VALLEY 5000
VALLEY 7000
VALLEY 8000

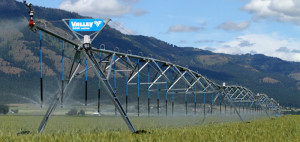

You need to maximize yields and acres on small fields, too, and they shouldn't be treated differently than large fields. That's why we offer the Valley® 5000 series center pivot, an irrigation machine that is as durable as the 8000 series, but specifically designed for your smaller fields, up to 60 acres. As with all Valley equipment, your local Valley dealer will provide premier, reliable service and aftermarket support when you purchase the 5000 series center pivot.
| Pivot point options | Small Field, 6 5/8" |
| Maximum machine length | 820' |
| Towable pivot point options | 3-Point Hitch 2-Wheel E-Z Tow 4-Wheel E-Z Tow |
| Maximum towing length | 660' |
| Pipe diameter options | 5" |
| Span length options | 112.5' - 202.5' |
| Overhang options | 19.2' - 55.9' |
| Booster pump options | 1 HP single phase, 2 HP |
| Tire size options | 11.2 - 24 11R - 24.5 Recap 14.9 - 24 Firestone Champion Hydro ND (14.9-24) |
| Floatation and traction options | Not available |
| Span connection | Hook-and-eye |
| Crop clearance profile options | Low, standard |
- Single-phase power available
- Hot-dip galvanized
- 4-leg drive unit with braces
- Welded sprinkler coupler
- Full wrap-around weldments
- Forged truss rod heads
- Uniform pipeline and truss rod crowns maintain even distribution of loads
- Tight contact of truss rod head in socket for even loading
- Polyurethane flange gaskets for longer, leak-free life
| Reliable | VS-7000 drive unit — will keep your pivot running throughout the growing season |
| Durable | Valley structure — engineered for long life |
| Precise | Sprinkler package — low energy and high uniformity |
| Easy-to-us | Valley control technology — mechanical and computerized control panels |
| Responsive | Valley dealers — fast, dependable service |

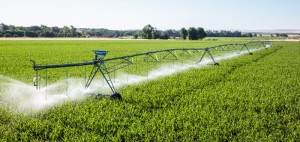

Everyone is worried about their budget – that’s a given! The good news is we offer the Valley® 7000 series center pivot that is both easy on your pocketbook and perfect for your field. Our 7000 series pivot is second only to the industry-leading 8000 series for reliability, durability, and overall performance.
| Pivot point options | 6 5/8”, 8” | |||
| Maximum machine length | 1,500' — for fields up to 160 acres | |||
| Towable pivot point options | Not available | |||
| Pipe diameter options | 6", 6 5/8" | |||
| Span length options | 115' - 205' | |||
| Overhang options | 9' - 100' | |||
| Booster pump options | 2 HP, 5 HP | |||
| Tire size options |
|
|||
| Floatation and traction options | 3-Wheel Drive | |||
| Span connection | Ball-and-socket | |||
| Crop clearance profile options | Low, standard |
- Comes standard with the VS-7000 gearbox
- Valley gearbox available
- Hot-dip galvanized
- 4-leg drive unit with braces
- Heavy 8-bolt pipe flanges
- Welded sprinkler coupler
- Full wrap-around weldments
- Forged truss rod heads
- Uniform pipeline and truss rod crowns maintain even distribution of loads
- Tight contact of truss rod head in socket for even loading
- Polyurethane flange gaskets for longer, leak-free life
| Reliable | Valley brand drive train available — will keep your pivot running when it matters most |
| Durable | Valley structure — engineered for long life |
| Precise | Sprinkler package — low energy and high uniformity |
| Easy-to-use | Valley control technology — mechanical and computerized control panels |
| Responsive | Valley dealers — fast, dependable service |

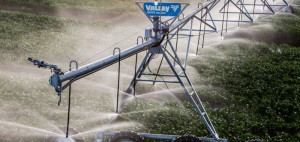

Whether it’s said over coffee at their favorite diner or at the dinner table, Valley® growers call the 8000 series center pivot the “Cadillac” of the pivot industry. It doesn’t matter if your field is large or small, you can rely on our 8000 series pivot to help you manage your farming operation and give you something positive to talk about.
| Pivot point options | 6 5/8", 8", 8 5/8", 10" | |||
| Maximum machine length | 2,800' | |||
| Towable pivot point options | 2-Wheel E-Z Tow 4-Wheel E-Z Tow Skid Tow |
|||
| Pipe diameter options | 6", 6 5/8", 8 5/8", 10" | |||
| Span length options | 115' - 225' | |||
| Overhang options | 9' - 100' | |||
| Booster pump options | 2 HP, 5 HP, 7.5 HP | |||
| Tire size options |
|
- Hot-dip galvanized
- 4-leg drive unit with braces
- Heavy 8-bolt pipe flanges
- Welded sprinkler coupler
- Full wrap-around weldments
- Forged truss rod heads
- Uniform pipeline and truss rod crowns maintain even distribution of loads
- Tight contact of truss rod head in socket for even loading
- Polyurethane flange gaskets for longer, leak-free life
| Reliable | Made in the USA Valley gearbox |
| Durable | Valley structure — engineered for long life |
| Precise | Sprinkler package — low energy and high uniformity |
| Easy-to-use | Valley control technology — mechanical and computerized control panels |
| Responsive | Valley dealers — fast, dependable service |
Why Should I Invest in the Longest Span in the Industry?
| Fewer drive units per machine | • Reduced per-acre costs • Requires one less set of tires, gearboxes, and motors • Fewer wheel tracks in the field — less crop damage • One less center drive motor to operate — lower energy costs |
| Reduced maintenance costs | • Less oil to change in the wheel and center drive gearboxes • Fewer tires to keep inflated • Fewer U-joint pucks to check and replace • Fewer worn tower box contractors to replace • Fewer weather-checked tires to replace |
| Durability and reliability | Valley engineers designed and tested the 225' span to withstand the most demanding strength and durability tests in the industry. These spans meet the same performance standards as all other Valley spans. |
Myths about the Longest Span in the Industry
| A longer span means more weight, which means deeper wheel tracks. | Wheel tracks are affected by ground pressure (the tire pressure, plus 2 PSI, plus the tire width and tread style), not the span weight. Span weight for the 225' span is similar to the 160' span |
| Higher sensitivity to wind resistance | Valley engineers simulate high winds by tipping the span until it rolls over. The performance of these spans was equivalent to shorter spans. |
